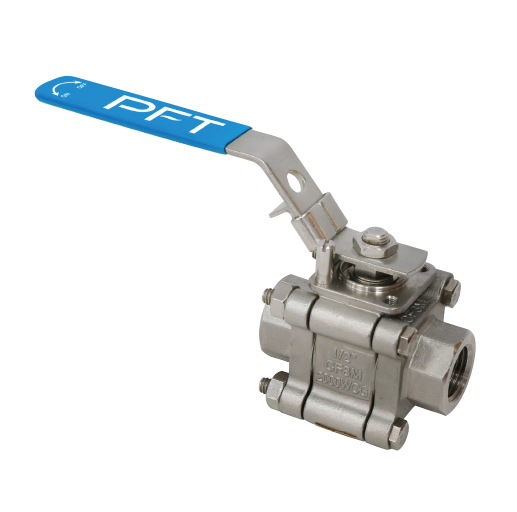

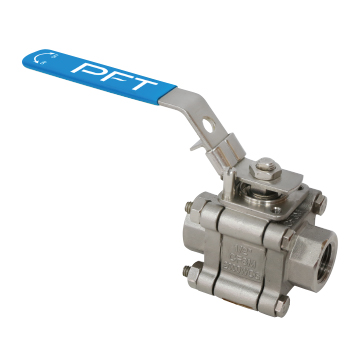

3-PC High Performance Ball Valve
Product Description
PB-3120
3 PC FULL PORT BALL VALVE THREAD END
FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- FIRE SAFE DESIGN AS OPTION
- ANTI-STATIC DESIGN IS STANDARD
- ISO 5211 MOUNTING PAD
- NACE MR 01-75
- WALL THICKNESS：ANSI B16.34
- NPT THREADS：ANSI B 1.20.1
- PRESSURE RATING：2000 WOG ( 1/4”~1” )
1500 WOG ( 1-1/4”~2” )
ALL VALVES 100% TEST PRESSURE
SHELL 3000 PSI BY HYDROSTATIC ( 1/4”~1” )
SHELL 2250 PSI BY HYDROSTATIC ( 1-1/4”~2” )
SEAT 80 PSI BY AIR
specification
| Size Range | DN8-DN50 (1/4"-2") |
|---|---|
| Configurations | 2-way 3-piece Full Port |
| End Connections | ISO 7/1, ISO 228/1, BS21, Socket Weld, Butt Weld (ANSI B1.20.1) |
| Pressure Rating | PB-3120 DN8-DN25 138 Bar (2000 psi) DN32-DN50 103 Bar (1500 psi) |
| Body Materials | 1.0619, 1.4408, 1.4462, 1.4536, 1.4547, 2.4686 (CF8M/ WCB) |
| Seat Materials | PTFE, RPTFE, TFM, PEEK or Other |
| Pressure Test | EN12266-1 (API-598) |
