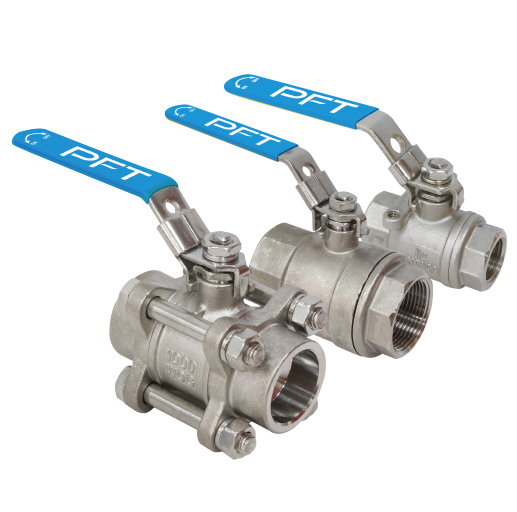

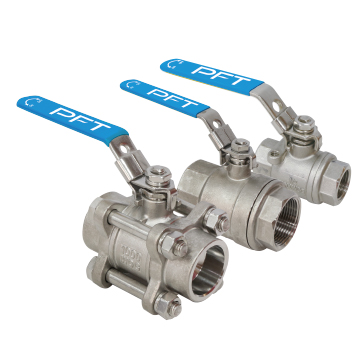

2-PC / 3-PC Economic Ball Valves
Product Description
PB-2120C / PB-2110C / PB-3110C
2 PC FULL PORT BALL VALVE THREAD END
PB-2120CFEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- PRESSURE RATING：2000 WOG ( 1/4”~1” ) 1500 WOG ( 1-1/4”~2” )
- NPT THREADS：ANSI B 1.20.1
ALL VALVES 100% TEST PRESSURE
SHELL 3000 PSI BY HYDROSTATIC ( 1/4”~1” )
SHELL 2250 PSI BY HYDROSTATIC ( 1-1/4”~2” )
SEAT 80 PSI BY AIR
PB-2110CFEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- PRESSURE RATING：1000 WOG
- NPT THREADS：ANSI B 1.20.1
ALL VALVES 100% TEST PRESSURE
SHELL 1500 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
PB-3110CFEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- PRESSURE RATING：1000 WOG
- NPT THREADS：ANSI B 1.20.1
ALL VALVES 100% TEST PRESSURE
SHELL 1500 PSI BY HYDROSTATIC
SHELL 80 PSI BY AIR
specification
| Size Range | DN8-DN50 (1/2"-2") |
|---|---|
| Configurations | 2-way 2-piece Full Port, 2-way 3-piece Full Port |
| End Connections | ISO 7/1, ISO 228/1, BS21 (ANSI B1.20.1) |
| Pressure Rating | PB-2110C/ PB-3110C 63 Bar (1000 psi) PB-2120C DN8-DN25 138 Bar (2000 psi) PB-2120C DN32-DN50 103 Bar (1500 psi) |
| Body Materials | 1.0619, 1.4408 (CF8M/ WCB) |
| Seat Materials | PTFE, RPTFE |
| Pressure Test | EN12266-1 (API-598) |
