1-PC / 2-PC Ball valves
Product Description

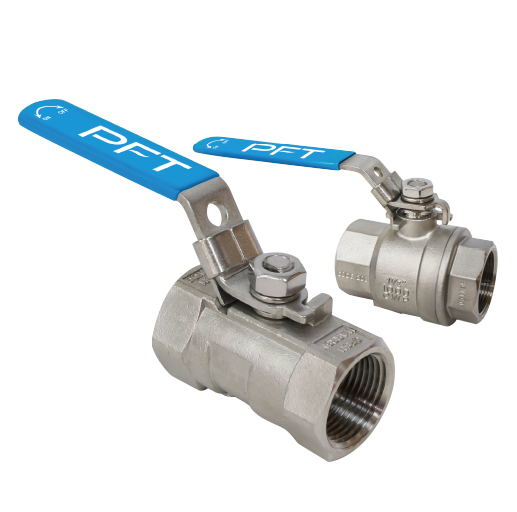

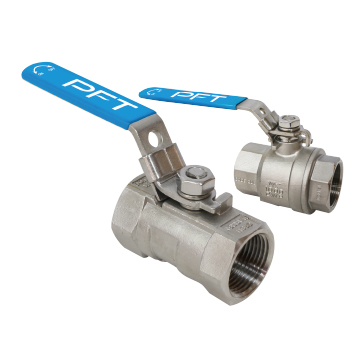

PB-1110 (1-PC S/P) / PB-2110 (2-PC F/P)
1 PC REDUCE PORT BALL VALVE THREAD END
2 PC FULL PORT BALL VALVE THREAD END
2 PC FULL PORT BALL VALVE THREAD END
PB-1110 FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- PRESSURE RATING：800 WOG
- NPT THREADS：ANSI B 1.20.1
ALL VALVES 100% TEST PRESSURE
SHELL 1200 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
PB-2110 FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- ISO 5211 MOUNTING PAD ( FOR 2-1/2”、3” )
- NPT THREADS：ANSI B 1.20.1
- PRESSURE RATING：1000 WOG
ALL VALVES 100% TEST PRESSURE
SHELL 1500 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
specification
| Size Range | DN8-DN80 (1/4"-3") |
|---|---|
| Configurations | 2-Way 1-Piece Standard Port 2-Way 2-Piece Full Port |
| End Connections | ISO 7/1, ISO228/1, BS21 (ANSI B1.20.1) |
| Pressure Rating | PB-1110 DN8-DN50 63 Bar (1000 psi) PB-2110 DN8-DN80 63 Bar (1000 psi) |
| Body Materials | 1.0619, 1.4408 (CF8M/ WCB) |
| Seat Materials | PTFE, RPTFE |
| Pressure Test | EN12266-1 (API-598) |
