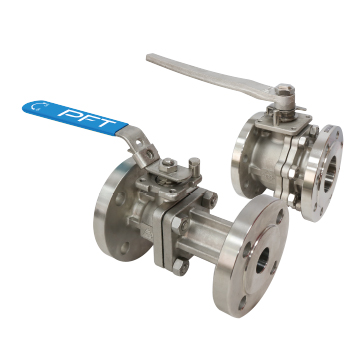

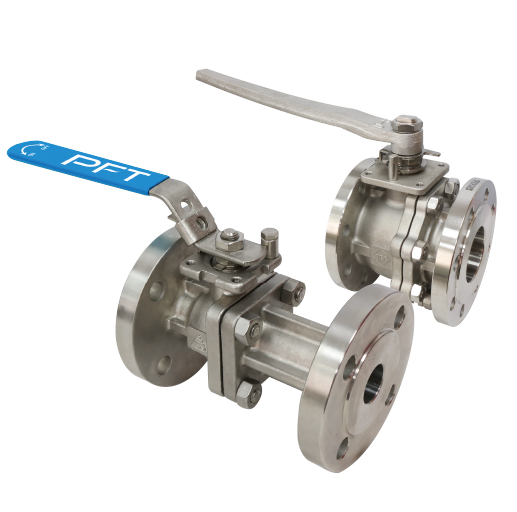

DIN PN16 / PN40 Flanged Ball Valves
Product Description
PB-2416 / PB-2416-F1
PB-2440 / PB-2440-F1
2 PC FULL PORT BALL VALVE FLANGE END
PB-2416-F4 / PB-2416-F1FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- FIRE SAFE DESIGN AS OPTION
- ANTI-STATIC DESIGN IS STANDARD
- ISO 5211 MOUNTING PAD
- FACE TO FACE：DIN3202 F4 / F1
- FLANGE DIMENSIONS：DIN2633 / DIN2635
- PRESSURE RATING：PN16
ALL VALVES 100% TEST PRESSURE
SHELL 350 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
PB-2416-F5FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- FIRE SAFE DESIGN AS OPTION
- ANTI-STATIC DESIGN IS STANDARD
- ISO 5211 MOUNTING PAD
- FACE TO FACE：DIN3202 F5
- FLANGE DIMENSIONS：DIN2633 / DIN2635
- PRESSURE RATING：PN16
ALL VALVES 100% TEST PRESSURE
SHELL 350 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
PB-2440-F4 / PB-2440-F1FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- FIRE SAFE DESIGN AS OPTION
- ANTI-STATIC DESIGN IS STANDARD
- ISO 5211 MOUNTING PAD
- FACE TO FACE：DIN3202 F4 / F1
- FLANGE DIMENSIONS：DIN2633 / DIN2635
- PRESSURE RATING：PN40
ALL VALVES 100% TEST PRESSURE
SHELL 870 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
PB-2440-F5FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- FIRE SAFE DESIGN AS OPTION
- ANTI-STATIC DESIGN IS STANDARD
- ISO 5211 MOUNTING PAD
- FACE TO FACE：DIN3202 F5
- FLANGE DIMENSIONS：DIN2633 / DIN2635
- PRESSURE RATING：PN40
ALL VALVES 100% TEST PRESSURE
SHELL 870 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
specification
| Size Range | DN15-DN300 (1/2"-12") |
|---|---|
| Configurations | 2-Way 2-Piece Full Port |
| End Connections | DIN2633, DIN2635 |
| Face to Face | DIN3202 F1/ F4/ F5 |
| Pressure Rating | PB-2416/ PB-2416-F1 16 Bar PB-2440/ PB-2440-F1 40 Bar |
| Body Materials | 1.0619, 1.4408, 1.4462, 1.4536, 1.4547, 2.4686 |
| Seat Materials | PTFE, RPTFE, TFM, PEEK or Other |
| Pressure Test | EN12266-1 |
