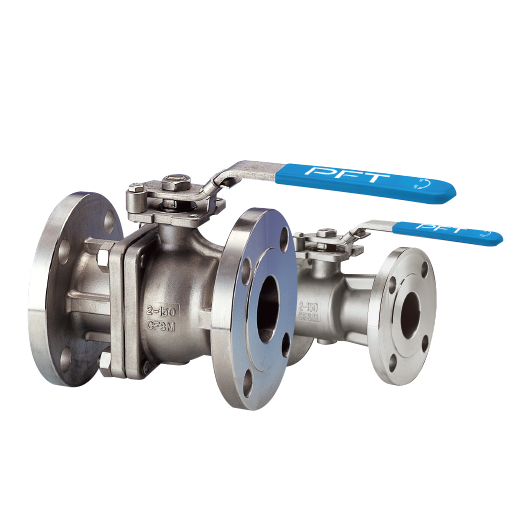

ANSI 150# / 300# Flanged Ball Valves
Product Description
PB-1415 (1-PC S/P) / PB-1430 (1-PC S/P)
PB-2415 (2-PC F/P) / PB-2430 (2-PC F/P)
ANSI 150# / 300# Flanged Ball Valves
PB-1415 / PB-2415FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- FIRE SAFE DESIGN AS OPTION
- ANTI-STATIC DESIGN IS STANDARD
- ISO 5211 MOUNTING PAD
- FACE TO FACE：ANSI B16.10
- FLANGE DIMENSIONS：ANSI B16.50
- PRESSURE RATING：ANSI 150#
ALL VALVES 100% TEST PRESSURE
SHELL 425 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
PB-1430 / PB-2430FEATURES & SPECIFICATIONS
- BLOW-OUT PROOF STEM
- FIRE SAFE DESIGN AS OPTION
- ANTI-STATIC DESIGN IS STANDARD
- ISO 5211 MOUNTING PAD
- FACE TO FACE：ANSI B16.10
- FLANGE DIMENSIONS：ANSI B16.50
- PRESSURE RATING：ANSI 300#
ALL VALVES 100% TEST PRESSURE
SHELL 1100 PSI BY HYDROSTATIC
SEAT 80 PSI BY AIR
specification
| Size Range | 1/2"-12" |
|---|---|
| Configurations | 2-Way 1-Piece Standard Port 2-Way 2-Piece Full Port |
| End Connections | ANSI B16.50 |
| Face to Face | ANSI B16.10 |
| Pressure Rating | PB-1415/ PB-2415 275PSI PB-1430/ PB-2430 720PSI |
| Body Materials | CF8M, WCB, CD3MN, CN7M, CK3MCuN, CW12MW |
| Seat Materials | PTFE, RPTFE, TFM, PEEK or Other |
| Pressure Test | API-598 |
